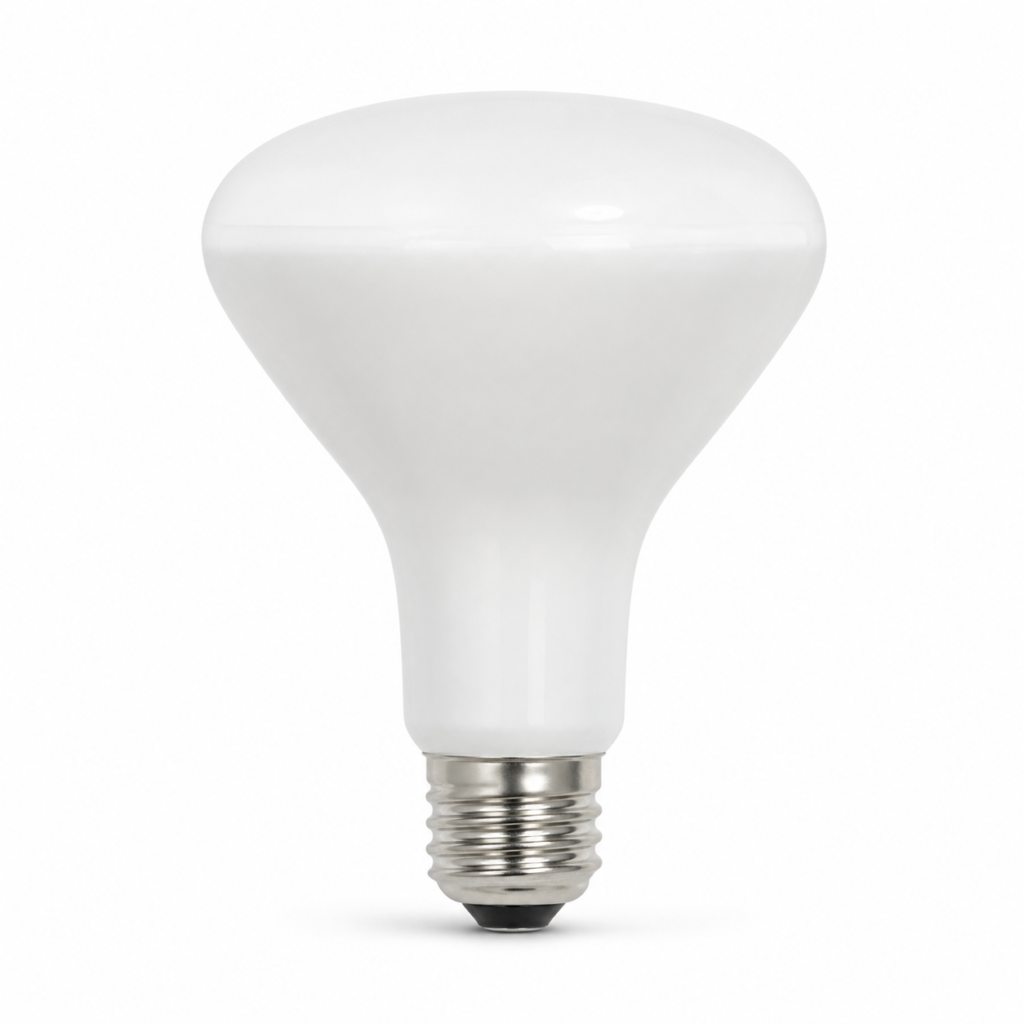

A bulged-reflector format designed to produce broad, soft-edged flood lighting.
BR means bulged reflector. BR30 has a nominal diameter of 30 eighths of an inch, or 3¾ inches.
Recessed cans, kitchens, living areas, hospitality spaces and general retail illumination.
BR30 lamps have been produced in LED, incandescent, halogen and compact-fluorescent forms with different beam spreads and neck lengths.
Technologies represented in this library: LED, Incandescent, Halogen, Fluorescent.
Available base types: E26, E27.
| Technology | Common wattage range | Typical lumen range | Common colour temperatures | Common voltage options |
|---|---|---|---|---|
| LED | 7–15 W | 650–1200 lm | 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 120V; 220–240V |
| INCANDESCENT | 50–85 W | 500–1000 lm | Approximately 2700K | 120V; 220–240V |
| HALOGEN | 45–75 W | 600–1100 lm | Approximately 2800K–3000K | 120V; 220–240V |
| FLUORESCENT | 15–23 W | 700–1200 lm | 2700K, 3000K, 3500K, 4100K | 120V; 220–240V |
These are representative market ranges, not guaranteed limits. Availability varies by manufacturer, voltage, base, beam, region and product generation.
Match the recessed-can opening, lamp length and base, then choose lumens, colour temperature, beam spread and dimming capability.
BR30 and PAR30 share a nominal diameter but produce different beam characteristics. BR lamps usually create a softer, broader flood.
Important: The library describes a lamp format, not a particular product. A shared shape does not guarantee matching voltage, base, dimensions, light distribution or control-gear requirements. Confirm the fixture label and product datasheet, or ask a Bulb World lighting specialist.
Match the recessed-can opening, lamp length and base, then choose lumens, colour temperature, beam spread and dimming capability.
BR30 and PAR30 share a nominal diameter but produce different beam characteristics. BR lamps usually create a softer, broader flood.
These are common market ranges. Exact specifications vary by manufacturer and product
Send us a photo, the markings on your existing bulb, or your fixture details. Our team will help you identify a suitable replacement.
