LED Neon Flex

LED Neon Flex

A flexible diffused LED system that creates a smooth neon-like line for signs and architectural accents without exposed glass tubing.

Bulb Technology

Available Bulb Base

No data was found

A flexible diffused LED system that creates a smooth neon-like line for signs and architectural accents without exposed glass tubing.

How to identify LED Neon Flex

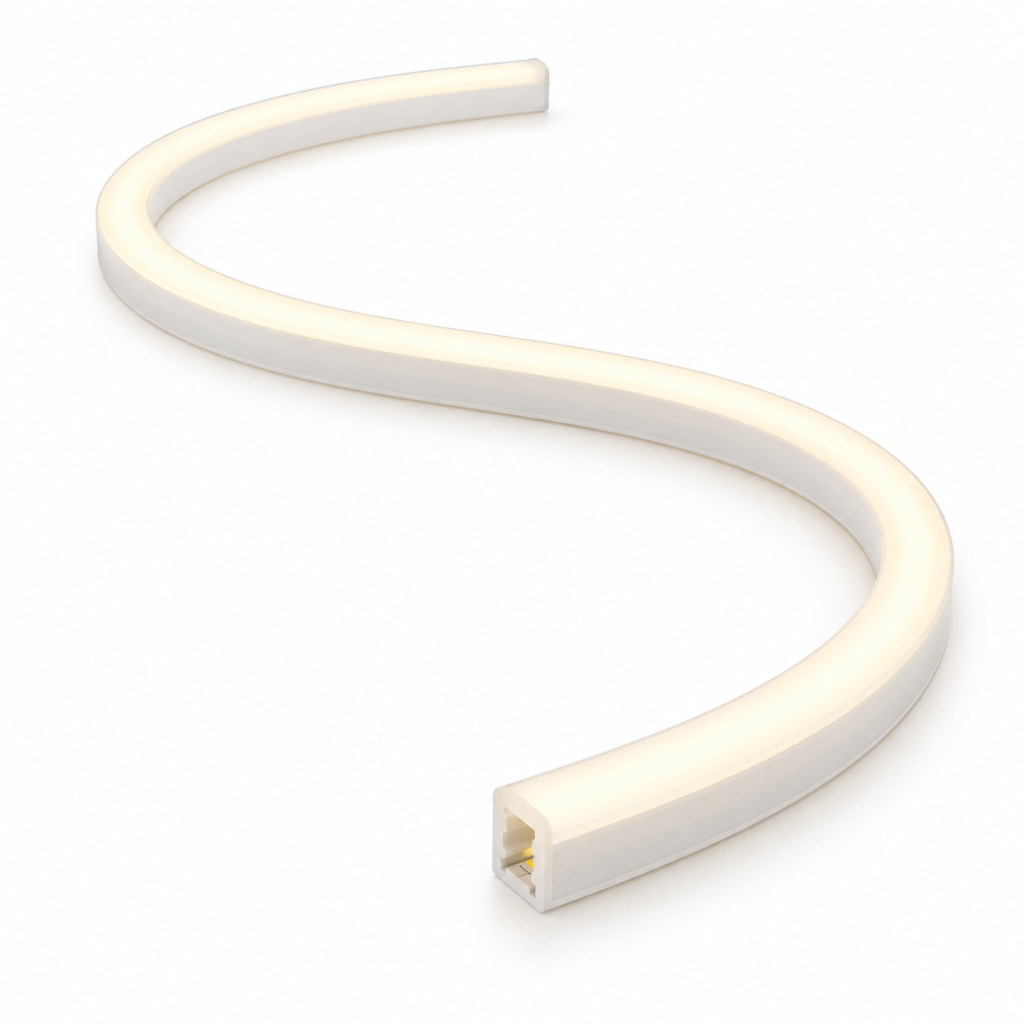

LEDs are enclosed in an opaque diffusing silicone or polymer profile. Products are designed for top bending, side bending or multidirectional bending.

Common applications

Signage, building outlines, hotels, restaurants, entertainment venues, retail environments and architectural accents.

Technologies and connection options

The diffusing housing hides individual LED points. Static-white, single-colour, RGB, RGBW and animated pixel versions are available.

Technologies represented in this library: LED.

Available base or connection types: Factory Lead, Two-Wire Connector, RGB/RGBW Connector.

Typical market availability

Static White LED

Common power: 2–6 W

Typical output: 100–500 lm

Colour options: Approximately 2200K–6500K

Voltage: Commonly 12V or 24V DC

Notes: Power and output figures are per foot. Outdoor and IP-rated versions are common.

RGB / RGBW LED

Common power: 3–7 W

Typical output: Product-specific / primarily decorative

Colour options: RGB, RGBW and animated pixel options

Voltage: Commonly 24V DC

Notes: Power figures are per foot; requires a compatible controller.

These are representative market ranges, not guaranteed limits. Availability varies by manufacturer, voltage, length, environmental rating, region and product generation.

How to select the correct system

Choose the required bending direction, profile dimensions, voltage, colour system, output, cut interval, controller and environmental rating.

Compatibility and safety

Do not bend neon flex against its specified direction or below its minimum bend radius. Field cuts and ends must be sealed exactly as directed.

Important: This library entry describes a lighting format, not a particular product. Similar appearance does not guarantee matching voltage, connectors, dimensions, output, environmental rating or control requirements. Confirm the product label and datasheet, or ask a Bulb World lighting specialist.

Replacement Notes

Choose the required bending direction, profile dimensions, voltage, colour system, output, cut interval, controller and environmental rating.

Capability Warning

Do not bend neon flex against its specified direction or below its minimum bend radius. Field cuts and ends must be sealed exactly as directed.

Common Market Options

led
Minimum Wattage: 2 watts
Maximum Wattage: 6 watts
Minimum Lumens: 100 Lumens
Maximum Lumens: 500 Lumens
Common Colour Temperatures Approximately 2200K–6500K
Common Voltage Options Commonly 12V or 24V DC
led
Minimum Wattage: 3 watts
Maximum Wattage: 7 watts
Minimum Lumens: 0 Lumens
Maximum Lumens: 0 Lumens
Common Colour Temperatures RGB, RGBW and animated pixel options
Common Voltage Options Commonly 24V DC
led
Minimum Wattage: 2 watts
Maximum Wattage: 6 watts
Minimum Lumens: 100 Lumens
Maximum Lumens: 500 Lumens
Common Colour Temperatures Approximately 2200K–6500K
Common Voltage Options Commonly 12V or 24V DC
led
Minimum Wattage: 3 watts
Maximum Wattage: 7 watts
Minimum Lumens: 0 Lumens
Maximum Lumens: 0 Lumens
Common Colour Temperatures RGB, RGBW and animated pixel options
Common Voltage Options Commonly 24V DC

These are common market ranges. Exact specifications vary by manufacturer and product

Need help finding the right LED Neon Flex?

Send us a photo, the markings on your existing bulb, or your fixture details. Our team will help you identify a suitable replacement.
