A small reflector lamp that produces a controlled pool of light for compact recessed and display fixtures.
R means reflector. R20 has a nominal face diameter of 20 eighths of an inch, or 2½ inches.
Small recessed cans, track lights, display cabinets, kitchens, restaurants and localized accent lighting.

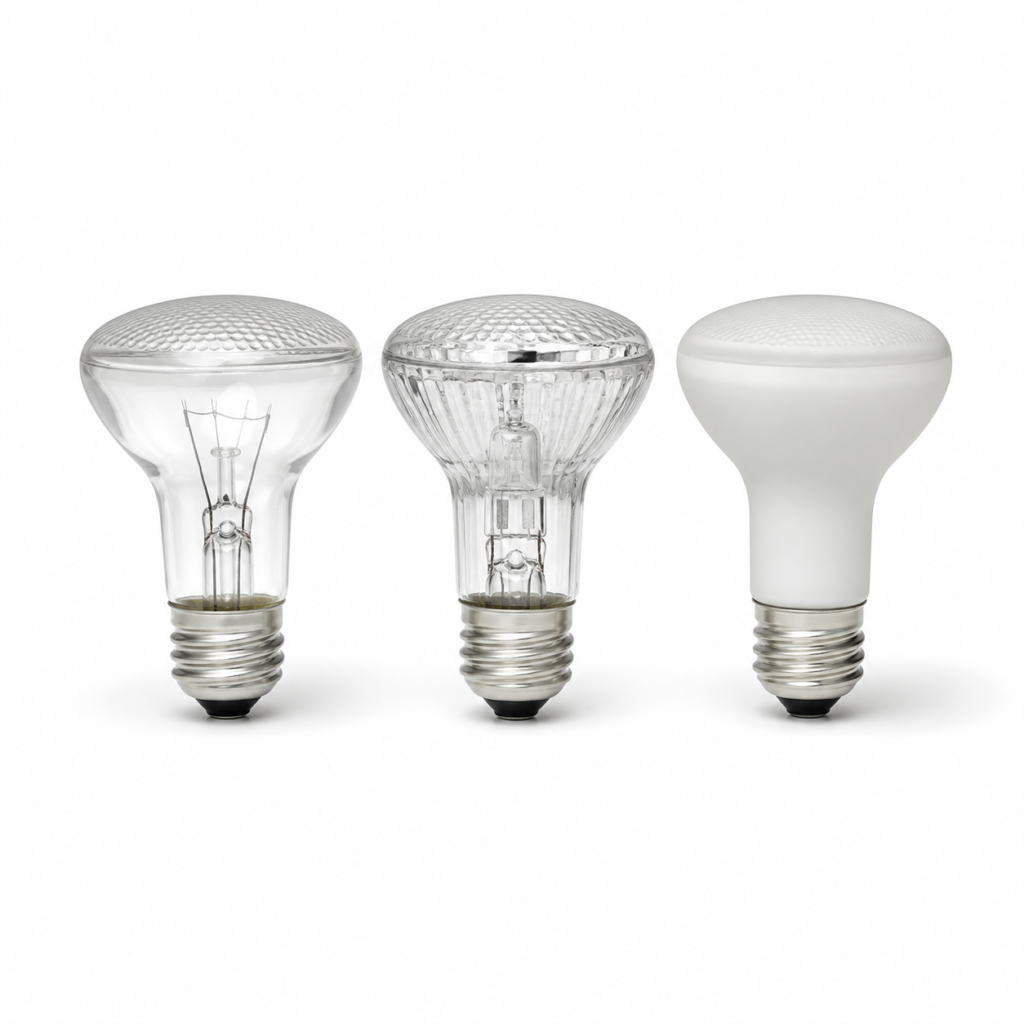

R20 lamps are manufactured in LED, incandescent and halogen versions with different flood distributions, neck lengths and finishes.
Technologies represented in this library: LED, Incandescent, Halogen.
Available base types: E26, E27.
| Technology | Common wattage range | Typical lumen range | Common colour temperatures | Common voltage options |
|---|---|---|---|---|
| LED | 4–8 W | 300–650 lm | 2200K, 2700K, 3000K, 4000K, 5000K | 120V; 220–240V |
| INCANDESCENT | 30–50 W | 200–500 lm | Approximately 2700K | 120V; 220–240V |
| HALOGEN | 35–50 W | 300–550 lm | Approximately 2800K–3000K | 120V; 220–240V |
These are representative market ranges, not guaranteed limits. Availability varies by manufacturer, voltage, base, beam, region and product generation.
Match base, voltage, face diameter and overall length, then compare lumens, beam spread, colour temperature and dimmer compatibility.
R20 and PAR20 share a nominal diameter but do not provide identical beam control or environmental protection.
Important: The library describes a lamp format, not a particular product. A shared shape does not guarantee matching voltage, base, dimensions, light distribution or control-gear requirements. Confirm the fixture label and product datasheet, or ask a Bulb World lighting specialist.
Match base, voltage, face diameter and overall length, then compare lumens, beam spread, colour temperature and dimmer compatibility.
R20 and PAR20 share a nominal diameter but do not provide identical beam control or environmental protection.
These are common market ranges. Exact specifications vary by manufacturer and product
Send us a photo, the markings on your existing bulb, or your fixture details. Our team will help you identify a suitable replacement.
